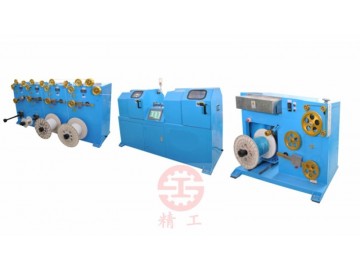

點擊圖片查看大圖數控立式雙/單層包帶機
Numerical control vertical type double/Single layer taping machine
用 途：
適用于絞合線,平行線雙層/單層連續中心繞包包帶
性能特征：
產能高:高轉速,生產效率是傳統包帶機的2.5倍
張力穩:包帶張力自動演算追蹤,從滿盤到空盤保持恒張力,不須人工調整
包距準:觸摸屏設定重疊率,PLC控制,加減速及正常工作時包帶形成點穩定不動
排線好:收線排位采用軸排式結構，排幅排距任意設定
品質高:制作HDMI,DP,ATA,SATA ,SAS等高頻線材,合格率
技術參數 Technical parameter
|
機器型號 Model |
VRBB-500 |
|
機器用途 Purpose |
適用于絞合線,平行線雙層/單層連續中心繞包包帶 It's used to twisted wire,parallel wire double layers /single layer continuously centering wrapping . |
|
芯線規格 Wire specification |
AWG32~AWG20 |
|
包帶材料 Taping material |
鋁箔帶,麥拉帶,棉紙帶,透明帶,云母帶,鐵氟龍帶 Aluminum foil tape ,cotton paper tape,transparent tape,mica tape ,teflon tape etc. |
|
機器轉速 Rotate speed |
MAX2000rpm / MAX28m/min |
|
機器動力 Power |
1HP馬達配變頻調速,包帶盤與引取馬達聯動 Speed regulation by 1HP motor with inverter, wrapping plate is |
|
包帶張力 Taping tension |
包帶張力自動演算追蹤,從滿盤到空盤保持恒張力,不須人工調整 Taping tension automatic calculation tracking and keep constant from start to end. Needn’t any artificial adjustment. |
|
放線型式 Pay-off type |
滑塊擺桿重錘張力式動力放線,配變頻調速,設斷線保護功能 Slider pendulum rod+Hammer tension type active pay off, online tension test display with dividing rule(r). Break line protection. |
|
收排方式 Traversing |
軸排式收線,線材排位過程中無推/拉力損傷,排幅排距根據線材規格任意設定 Axis-row type take up, no damage during the traversing process, distance can be set freely according the wire specification. |
|
熱熔烘箱 Heating device |
移動伸縮式熱熔烘烤箱,RKC溫控,溫度公差:±1℃ Auto flexible type, RKC temperature control, the temperature will controlled within ±1℃ |
